Distributed GraphQL Quickstart with Hasura

This is a GraphQL quickstart. Your apps will run faster if the APIs they call are physically located close to your end users. You'll deploy the open-source Hasura from DockerHub, and to make things quick we'll leverage a pre-created data source that CloudFlow provides. (Our other GraphQL tutorials show you how to configure various backend databases of your own.)

note

Before starting, create a new CloudFlow Project and then delete the default Deployment and ingress-upstream Service to prepare the project for your new deployment.

Create a Deployment for Hasura​

Create the deployment for Hasura as hasura-deployment.yaml. This will direct CloudFlow to run the Hasura open source container. Note that we are using a connection string that points to a read-only CloudFlow owned/operated database on AWS. Be sure to supply a Hasura console password in YOUR_ADMIN_PASSWORD.

hasura-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: hasura
  name: hasura
spec:
  replicas: 1
  selector:
    matchLabels:
      app: hasura
  template:
    metadata:
      labels:
        app: hasura
    spec:
      containers:
      - image: hasura/graphql-engine
        imagePullPolicy: Always
        name: hasura
        resources:
          requests:
            memory: ".5Gi"
            cpu: "500m"
          limits:
            memory: ".5Gi"
            cpu: "500m"
        env:
        - name: HASURA_GRAPHQL_DATABASE_URL
          value: postgresql://read_only_user:8BiusLd6Z89kjVgS@database-hasura-1.cluster-cf59c7eojxdx.us-west-1.rds.amazonaws.com:5432/postgres
        - name: HASURA_GRAPHQL_ENABLE_CONSOLE
          value: "true"
        - name: HASURA_GRAPHQL_ADMIN_SECRET
          value: YOUR_ADMIN_PASSWORD

Apply this deployment resource to your Project with either the Kubernetes dashboard or kubectl apply -f hasura-deployment.yaml.

Expose the Hasura Console on the Internet​

We want to expose the Hasura console on the Internet. Create ingress-upstream.yaml as defined below.

ingress-upstream.yaml
apiVersion: v1
kind: Service
metadata:
  labels:
    app: ingress-upstream
  name: ingress-upstream
spec:
  ports:
  - name: 80-80
    port: 80
    protocol: TCP
    targetPort: 8080
  selector:
    app: hasura
  sessionAffinity: None
  type: ClusterIP

Apply this service resource to your Project with either the Kubernetes dashboard or kubectl apply -f ingress-upstream.yaml.

See the pods running on CloudFlow's network using kubectl get pods -o wide.

The -o wide switch shows where your GraphQL API is running according to the default AEE location optimization strategy. Your GraphQL API will be optimally deployed according to traffic.

Hasura pods

Experiment with Hasura​

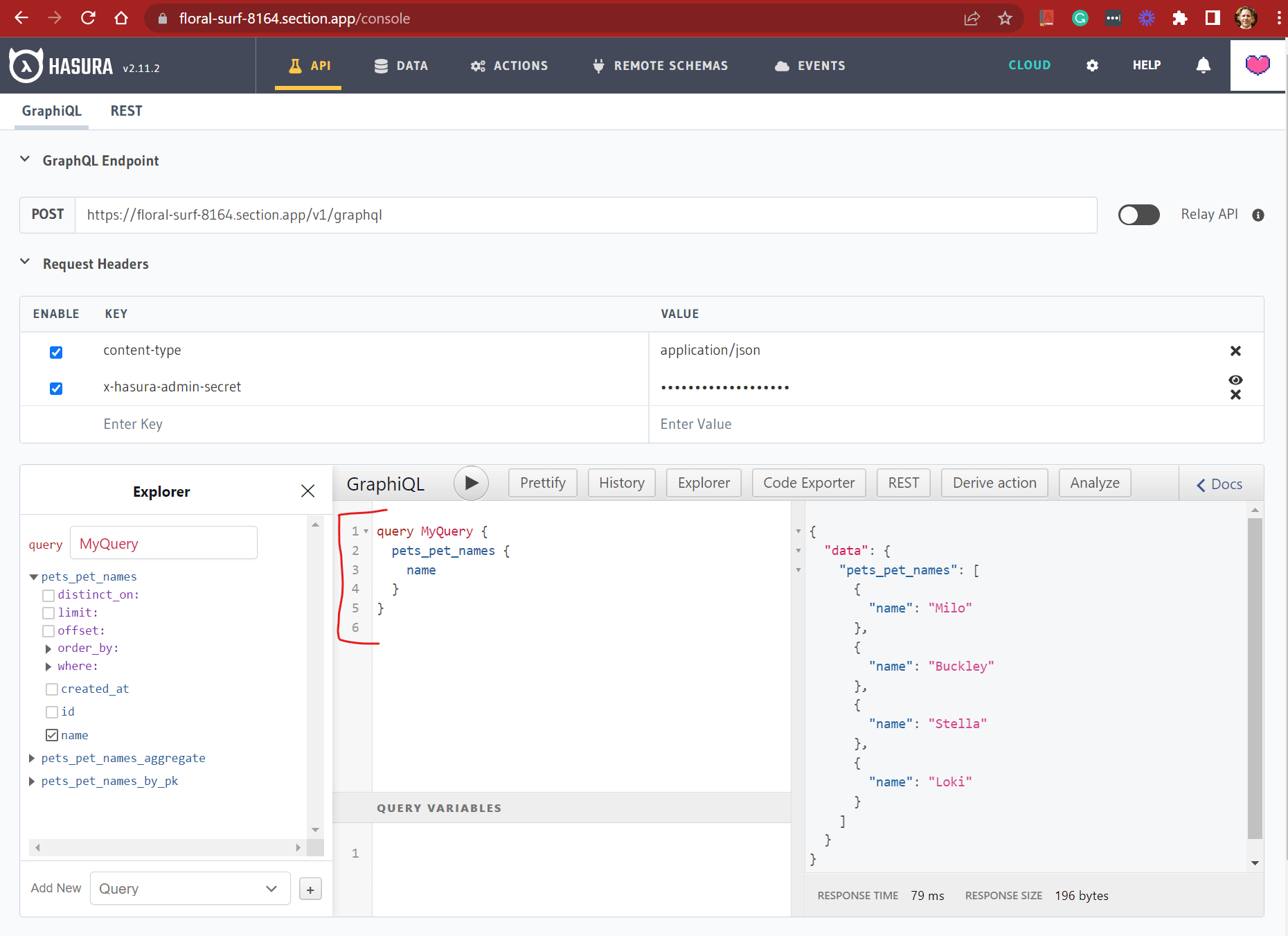

Now, you can start using Hasura. The AWS RDS Aurora database contains a small amount of read-only "pets" data that you can use to experiment with Hasura's GraphQL querying ability.

Pets query
